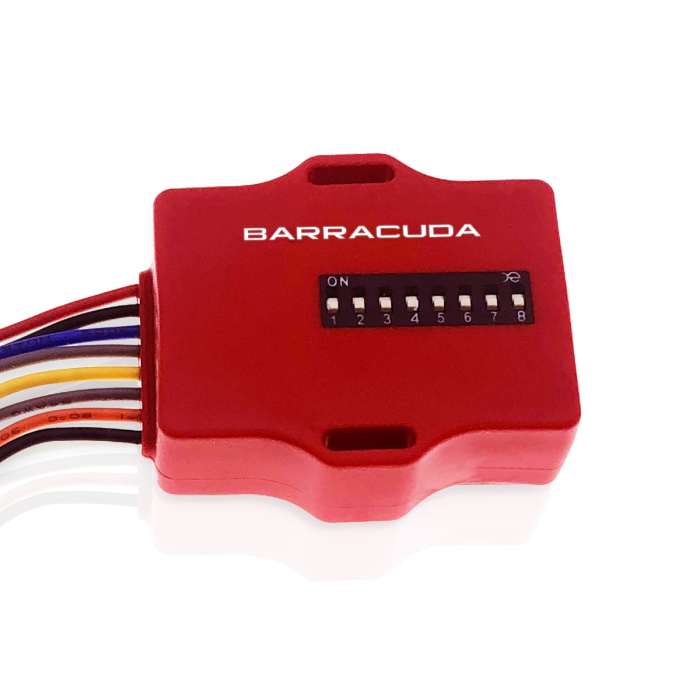

CAN-BUS RELAY
The CAN-BUS RELAY BARRACUDA is an electronic component essential for the correct operation and flashing of the direction indicators for most vehicles equipped with the CAN-BUS system.
The CAN-BUS RELAY supplies an electrical load necessary for the correct operation and flashing of the BARRACUDA LED INDICATORS by means of the combination of the appropriate switches. Up to 2 channels can be operated, for example: direction indicators in the Rear Left and direction indicators in the Rear Right.
The CAN-BUS RELAY BARRACUDA can also be used on vehicles equipped with original LED direction indicators.
The following resistance values can be set: 150 ohm 170 ohm 200 ohm240 ohm300 ohm400 ohm600 ohm 1200 ohm
Cable length = 200mm with 3mm Faston
Connections: Yellow = channel 1 input (+) Orange = output channel 1 (+) Blue = input channel 2 (+) red = output channel 2 (+) gray = input ground (-) black = output surface (-)
Connectivity: 1 CAN-BUS REALIS for 1 PAIR OF INDICATORS.
For any further information or technical requirements, we please you to ask to our TECHNICAL OFFICE sendind a mail to: [email protected]
- FREE SHIPPING for cart over € 150
- FREE RETURN* (optional)
- FREE MOTORCYCLE COVER for orders over €200
- PAY IN 3 INSTALLMENTS (optional with Paypal)
The CAN-BUS RELAY BARRACUDA is an electronic component essential for the correct operation and flashing of the direction indicators relating to most vehicles equipped with the CAN-BUS system.
The CAN-BUS RELAY supplies an electrical load necessary for the correct operation and flashing of the BARRACUDA LED INDICATORS through the combination of the appropriate switches.
It is possible to operate up to 2 channels, for example: the direction indicators in the Rear Left and direction indicators in the Rear Right.
The CAN-BUS RELAY BARRACUDA can also be used on vehicles equipped with original LED direction indicators.
The following resistance values can be set:
- 150 ohms
- 170 ohms
- 200 ohms
- 240 ohms
- 300 ohms
- 400 ohms
- 600 ohms
- 1200 ohms
Cable length = 200mm with 3mm Faston
Connections:
- Yellow = channel 1 input (+)
- Orange = output channel 1 (+)
- Blue = input channel 2 (+)
- Red = output channel 2 (+)
- Gray = input mass (-)
- Black = exit surface (-)
Connectivity: 1 CAN-BUS REALIS for 1 PAIR of INDICATORS.
| Short Description | The CAN-BUS RELAY BARRACUDA is an electronic component essential for the correct operation and flashing of the direction indicators for most vehicles equipped with the CAN-BUS system. The CAN-BUS RELAY supplies an electrical load necessary for the correct operation and flashing of the BARRACUDA LED INDICATORS by means of the combination of the appropriate switches. Up to 2 channels can be operated, for example: direction indicators in the Rear Left and direction indicators in the Rear Right. The CAN-BUS RELAY BARRACUDA can also be used on vehicles equipped with original LED direction indicators. The following resistance values can be set: 150 ohm 170 ohm 200 ohm240 ohm300 ohm400 ohm600 ohm 1200 ohm Cable length = 200mm with 3mm Faston Connections: Yellow = channel 1 input (+) Orange = output channel 1 (+) Blue = input channel 2 (+) red = output channel 2 (+) gray = input ground (-) black = output surface (-) Connectivity: 1 CAN-BUS REALIS for 1 PAIR OF INDICATORS.
For any further information or technical requirements, we please you to ask to our TECHNICAL OFFICE sendind a mail to: [email protected]
|
|---|
